Case
The mechanical design is centered around simple designs that can be created in a home shop.
- 3D Printed Case
- Flat aluminum heatsink plate
- Flat aluminum baseplate
- The heatsink is designed to be 2 pieces. A heatsink plate and a baseplate
- The heatsink plate provides clearance for the THT pins of the Deutsch connectors and the RedCube terminal while getting as close to the Profets as possible
-
Warning
The heatsink plate should be covered on both sides with a thermal pad material to electricaly isolate the heatsink while still providing a thermal interface (Example: 3M 5583S) - The baseplate holds the case and also sandwiches the spacer plate to the PCB
Exploded Assembly
| ID | Description | Details | Qty |
|---|---|---|---|
| 1 | Baseplate | Aluminum 6061 |
1 |
| 2 | Heatsink | Aluminum 6061 |
1 |
| 3 | Case | 3D Print |
1 |
| 4.1 | PCB | 1 | |
| 5.1 | Ring Lug | M6 or 1/4" |
1 |
| 5.2 | Lug Washers | M6 Flat |
2 |
| 5.3 | Lug Screws | M6x1.0x14mm |
2 |
| 5.5 | Case Washers | M6 Flat |
4 |
| 5.6 | Case Screws | M6x1.0x14mm |
4 |
| 5.7 | PCB Washers | M3 Flat |
4 |
| 5.8 | PCB Screws | M3x0.5x12mm |
4 |
| 6 | DT Connector | 12 Pin |
1 |
| 10.1 | Light Pipe | PLPC2-10MM |
3 |
| 13 | Connector Screws | No. 6, 5/8" Thread Forming |
2 |

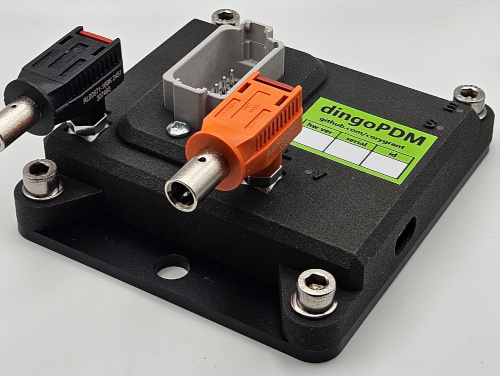

Radlok
As an alternative, Amphenol Radlok 5.7mm connectors can be used for the battery connections instead of ring connectors.
- Radlok 5.7mm pins and 4AWG connectors are rated at 120A
- Radlock 5.7mm 6AWG connectors are rated at 90A
Note
Radlok M6 pin threads are slightly too long, use a washer under the pin to space the pin out.
| Description | Detail | Rating | Qty | Part Number |
|---|---|---|---|---|
| Pin | M6x1.0 |
120A | 2 | RL9057-101 |
| M6 Washer | M6 Flat |
2 | ||
| Red Connector | 6AWG / 16mm^2 |
90A | 1 | RL0057-1-16RE |
| Black Connector | 6AWG / 16mm^2 |
90A | 1 | RL0057-1-16BK |
| Alternative Orange Connector | 6AWG / 16mm^2 |
90A | 1 | RL0057-1-16 |
| Red Connector | 4AWG / 25mm^2 |
120A | 1 | RL00571-25RE |
| Black Connector | 4AWG / 25mm^2 |
120A | 1 | RL00571-25BK |
| Alternative Orange Connector | 4AWG / 25mm^2 |
120A | 1 | RL00571-25 |
Models
Models of the baseplate, heatsink and case can be found here:
Complete STEP File (DingoPDM_V7_4.step)
